U8
Product Overview
Feature：
1. Fully digital high-precision motor adjustment and memory positioning function to achieve fast alignment.
2. Print heads adopt an intelligent full-servo equipped with a reducer, and the print heads run with high precision, which makes the printing process more stable and less noisy.
3. Print heads adopt double pneumatic automatic lifting screen, making the air pressure more stable, instead of manually lifting the screen, so that the operator saves time and effort.
4. The screen can be quickly unloaded and installed, overcoming the difficulty of unloading and not limited by the screen frame: the size of the screen frame can be used universally.
5. Pallets adopt 8mm solid platen combined with the unique support method independently developed by our company, so that the pallet will never be deformed.
6. Parallel moving oven makes the overall appearance of the machine look good, and it is convenient for operators to clean.
7. High nesting accuracy: advanced technology, mature and stable. Machine nesting accuracy error is within ±0.01 mm, effectively improving the quality rate of printed products and the printing quality.
8. Suitable for multiple printing processes; using the arrangement of print head, oven and cooling, various pastes can be used, especially for different printing processes such as water-based ink, plastisol ink, thick plate, discharge, puff, etc.

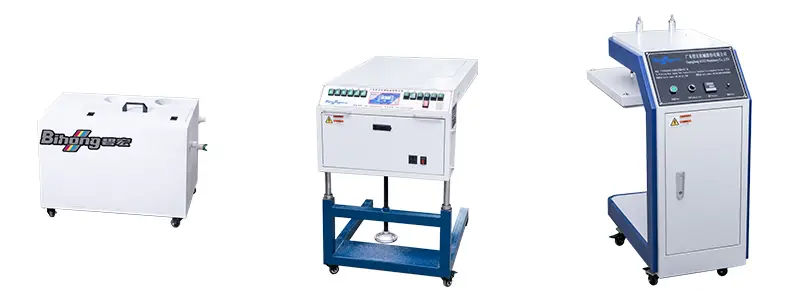

Matched Machines & Parts:
1. Flexible and changeable flash cure unit .
2. Humidifier with pipe.
3.Heat press.
4. Registration pins.
5. Squeegees and flood bars.
Option:
1. Hybrid digital printer unit.
2. Flocking unit.
3. Laser locator system.
4. Printing stroke function.
5. Garment pallets.
Main Technical Parameter of Oval Printing Machine:
| Tyep | BH-U8-8C | BH-U8-10C | BH-U8-12C | BH-U8-14C | BH-U8-16C | BH-U8-18C | BH-U8-20C |
| Color | 8colors | 10colors | 12colors | 14colors | 16colors | 18colors | 20colors |
| Number of Pallets | 30pcs | 36pcs | 42pcs | 48pcs | 54pcs | 60pcs | 66pcs |
| Pallet Size(WxL) | S 630x865mm L1 700x1050mm L2 850x1200mm | ||||||
| Printing Image Area(WxL) | S 580x700mm L1 650x900mm L2 800x1000mm | ||||||
| Screen Frame Size (WxL) | S 700x1000mm L1 800x1180mm L2 900x1280mm | ||||||
| Machine Length | 1400cm | 1650cm | 1900cm | 2145cm | 2392cm | 2640cm | 2890cm |
| Machine Width | S 350cm L1 380cm L2 420cm | ||||||
| Machine Height | S 160cm L1 180cm L2 186cm | ||||||
| Machine Weight | 3600kg | 4390kg | 5150kg | 5900kg | 6660kg | 7450kg | 8200kg |
| Printing Registration Accuracy | ±0.01mm | ||||||
| Pneumatic Requirement | 0.6MPa/0.8MPa (After drying and filtering can be used) | ||||||
| Print Head Power Driver | 400W (every printing head serovo motor) | ||||||
| Total Power Consumption(No Flash Cure) | 4.7kw | 6kw | 6.8kw | 7.6kw | 8.9kw | 9.7kw | 10.5kw |
| Each Oven Max.Power | S 15.6kw L1 19.5kw L2 32.5kw | ||||||
| Electric Requirement | Three phase 380V, 50Hz | ||||||
| Production Capacity | 600pcs/hour | ||||||

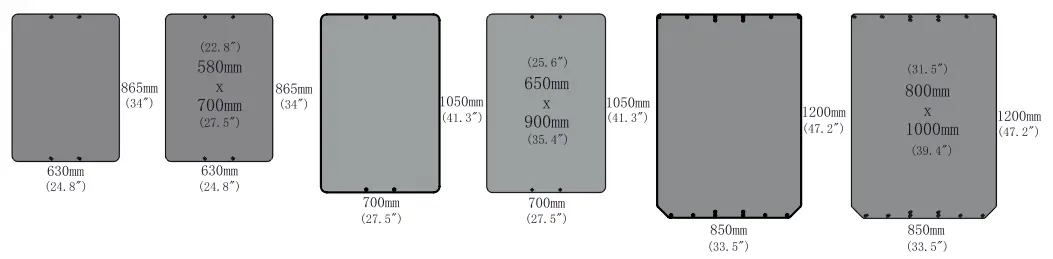

Pallet Selection: 630x865mm 700x1050mm 850x1200mm
The quality Oval screen printing machine is a remarkable piece of equipment. It is designed with precision and expertise to ensure outstanding printing results. This machine offers high-quality output with sharp and clear images on various materials. Its oval design allows for efficient and continuous printing, enhancing productivity. It is equipped with advanced features such as accurate registration and smooth operation, ensuring consistent and reliable performance. The machine is built to last, with durable components that can withstand heavy use. It is user-friendly, making it easy for operators to handle and produce excellent prints. Whether for industrial or commercial applications, this Oval screen printing machine is a top choice for achieving superior printing quality.
