X7
Product Overview
Feature：
1. High positioning accuracy: self-created triangular positioning system, advanced techi nology, mature and stable, the positioning accuracy error is within ±0.01 mm, ensuring the positioning accuracy of the pallets and improvin ng the printing quality.
2. Flexible and changeable flash cure: ①Fixed hanging version ②Movable version.
3. Customizable models: special models can be provided according to the printing pro ocess requirements of different materials for customers. Columns can also be designed to wrap in the machine to make reasonable use of space.
4. Ensure the stable operation of the large version: Dual rails support big pallets.
5. Flexibility of screen frame to move: Air-assisted rear frame support facilitates quick sc creen loading and unloading ;Different screen sizes can be used.
6. The operation is more convenient: the screen frame is fixed in a unique way; adopting g pneumatic way to lift screen, which saves time and labor. Cleaning the screen without picking up the screen.
7. The machine can adopt different screen frame, not limited by the screen frame size. ( Customers' original screen frame for machine printing or manual printing can be used on this machine; large pieces, garment printing g is not restricted.

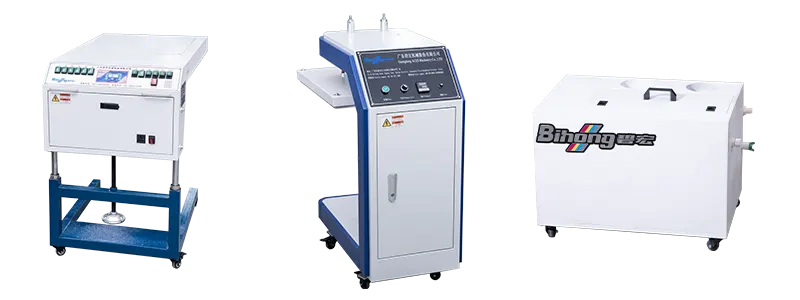

Matched Machines & Parts:
1. Flexible and changeable flash cure unit .
2. Humidifier with pipe.
3.Heat press.
4. Registration pins.
5. Squeegees and flood bars.
Option:
1. Hybrid digital printer unit.
2. Flocking unit.
3. Laser locator system.
4. Printing stroke function.
5. Garment pallets.
Main Technical Parameter of Oval Printing Machine:
| Type | BH-X7-8C | BH-X7-10C | BH-X7-12C | BH-X7-14C | BH-X7-16C | BH-X7-18C | BH-X7-20C | BH-X7-22C | BH-X7-24C |
| Color | 8colors | 10colors | 12colors | 14colors | 16colors | 18colors | 20colors | 22colors | 24colors |
| Number of Pallets | 30pcs | 36pcs | 42pcs | 48pcs | 54pcs | 60pcs | 66pCs | 72pcs | 78pcs |
| Pallet Size(WxL) | S 630x865mm L1700x1050mm L2850x1200mm | ||||||||
| Printing Image Area(WxL) | S 580x700mm L1650x900mm L2800x1000mm | ||||||||
| Screen Frame Size (WxL) | S 700x1000mm L1 800x1180mm L2900x1280mm | ||||||||
| Machine Length | 1228cm | 1450cm | 1675cm | 1898cm | 2121cm | 2344cm | 2568cm | 2790cm | 3014cm |
| Machine Width | S 350cm L1380cm L2420cm | ||||||||
| Machine Height | S 160cm L1180cm L2186cm | ||||||||
| Machine Weight | 3600kg | 4350kg | 5100kg | 5850kg | 6600kg | 7350kg | 8100kg | 8900kg | 9650kg |
| Printing Registration Accuracy | ±0.01mm | ||||||||
| Pneumatic Requirement | 0.6MPa/0.8MPa (After drying and filtering can be used) | ||||||||
| Print Head Power Driver | 400W(every printing head servo motor) | ||||||||
| Total PowerConsumption(No Flash Cure) | 4.7kw | 6kw | 6.8kw | 7.6kw | 8.9kw | 9.7kw | 10.5kw | 12.2kw | 13kw |
| Each Oven Max.Power | S 15.6kw L119.5kw L232.5kw | ||||||||
| Electric Requirement | Three phase 380V,50Hz | ||||||||
| Production Capacity | 600pcs/hour | ||||||||

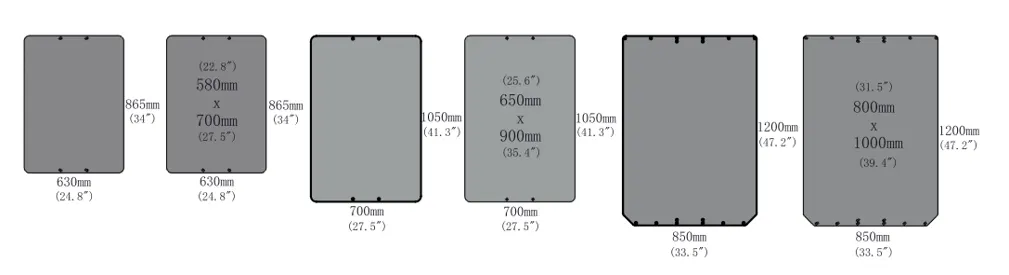

Pallet Selection: 630x865mm 700x1050mm 850x1200mm
Discount Screen Printing Machine offers an excellent opportunity for high-quality printing at an affordable price. This machine is designed to meet the diverse needs of businesses and individuals. It features precision engineering and advanced technology to ensure sharp and vibrant prints every time. The user-friendly interface makes it easy to operate, even for beginners. With its efficient printing process, it saves both time and resources. Whether for printing on fabrics, paper, or other materials, this discount screen printing machine delivers outstanding results. It's a reliable and cost-effective choice for those seeking professional-level printing without breaking the bank.
KeyWords：Screen Printing Machine
